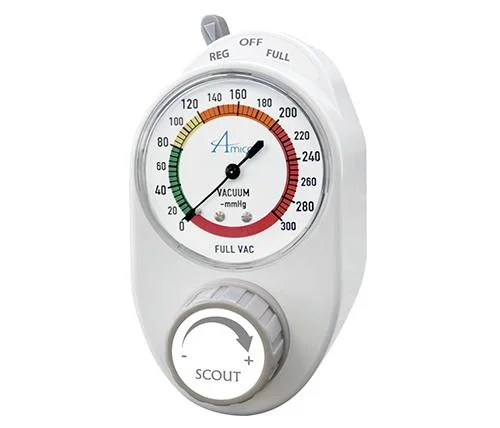

SRA-CIUD-OM Analog Vacuum Regulator

Performance

• Intermittent Flowrate: Adult: 8 LPM, Pediatric: 8 LPM, Neonatal: 8 LPM
• Continuous Flowrate: Adult: 65 LPM, Pediatric: 40 LPM, Neonatal: 40 LPM
• 16 seconds on/ 8 seconds off
• Timing can be adjusted on the back of the unit with access to ON and OFF needle valves, starts in the OFF position

Gauge Accuracy

• Analog: ± 3% Full-scale
• Digital: ± 1% Full-scale

Dimensions

• Height: 5.94″ (15.09 cm)
• Width: 2.93″ (7.44 cm)
• Depth: 4.04″ (10.26 cm)

Weight

• Continuous: 0.65 lbs (0.29 kg)
• Intermittent: 0.8 lbs (0.36 kg)

Battery

• Lithium: 2, 2/3 AA batteries, 3.6 V, 1.6 Ah, lithium

Vacuum Range

• Continuous High/Surgical: 0 – 750 mmHg (94 KPA)
• Continuous and Continuous/Intermittent: 0 – 300 mmHg (40 KPA)
• Pediatric and Pediatric/Intermittent: 0 – 160 mmHg (20 KPA)
• NeoNatal and NeoNatal/Intermittent: 0 – 100 mmHg (13 KPA)
